Concrete Sleeper is a kind of railway sleeper made of steel reinforced concrete, with the characteristic of water resistant, sun resistant and corrosion resistant. Which has 2 types of sizes, namely 1067 and 1435.
Category :
Concrete Sleeper is a kind of railway sleeper made of steel reinforced concrete, with the characteristic of water resistant, sun resistant and corrosion resistant. Which has 2 types of sizes, namely 1067 and 1435.
| Product ID | BJR-1067 |
| Availability | Prepared by Order |
| Price | Please contact our marketing |
| Width (mm) | 260 |
| Height (mm) | 220 |
| Length (mm) | 2000 |
| Thickness (mm) | |
| Volume (m3) | |
| Weight (kg) | 203 |
| Moment Crack (ton.m) | |
| Moment Ultimate (ton.m) | |
| Allowable Axial Load (Ton) | |
| Crack Load (kN/m) | |
| Ultimate Load (kN/m) | |
| Outer Diameter (mm) | |
| Inner Diameter (mm) | |
| Hydrostatic Pressure (MPa) |
| Product ID | BJR-1435 |
| Availability | Prepared by Order |
| Price | Please contact our marketing |
| Width (mm) | 300 |
| Height (mm) | 225 |
| Length (mm) | 2440 |
| Thickness (mm) | |
| Volume (m3) | |
| Weight (kg) | 316 |
| Moment Crack (ton.m) | |
| Moment Ultimate (ton.m) | |
| Allowable Axial Load (Ton) | |
| Crack Load (kN/m) | |
| Ultimate Load (kN/m) | |
| Outer Diameter (mm) | |
| Inner Diameter (mm) | |
| Hydrostatic Pressure (MPa) |

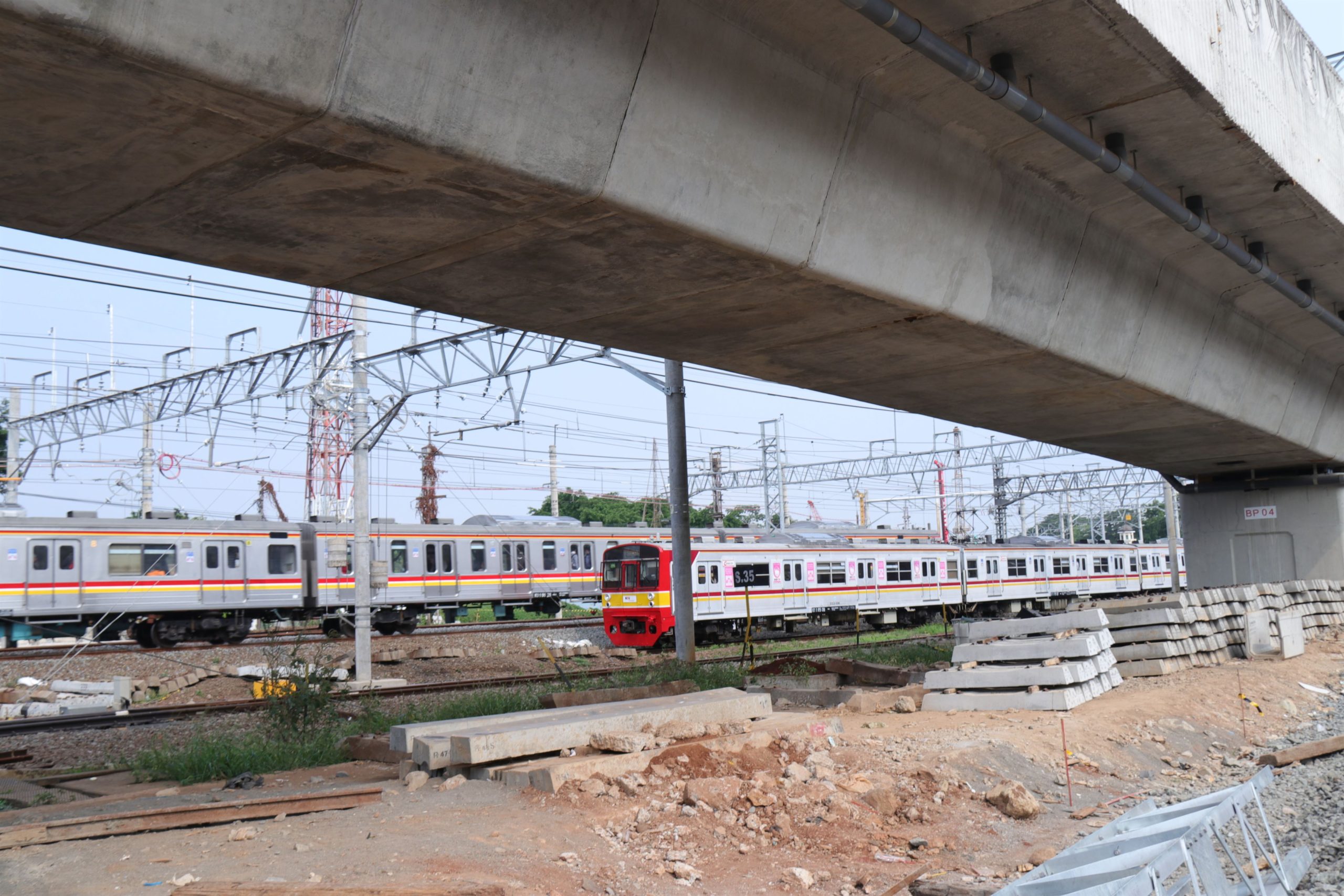

Pembangunan Fasilitas Perkeretaapian untuk manggarai s/d jatinegara Paket A Tahap II Pekerjaan Main Line II
| Owner | Waskita – Utama KSO |
| Nilai Proyek | 3,251,840,000 |
| Project Year |
| SK.516/KA.604/DRJD/2002 | Petunjuk teknis penggunaan bantalan beton |
| HK.207/SK.61/DJKA/5/13 | Standar Beton Pracetak untuk Prasarana Perkeretaapian |
| AREMA Ch. 30 | Concrete Ties |
| ITEM | SPECIFICATION | REFERENCE | |
| Aggregate | ASTM C33 – 2016 | (Standard Specification Concrete Aggregates) | |
| SNI 8321-2016 | (Concrete Aggregate Specification) | ||
| Cement | SNI 15-2049-2004 | (Portland�s Cement) | |
| Admixture | ASTM C494 – 2016 | (Standard Specification for Chemical Admixture for Concrete) | |
| Concrete | Compressive Strength at : 28 Days : 600 kg/cm2 (Cube); 50 MPa (Cylinder) | SNI 2847-2013 | (Structural Concrete Requirement) |
| PC Wire | SBPDL 1275/1420 | JIS G 3536 : 2008 | (Steel Wires dnd Strands for Prestressed Concrete) |
| KBjP-R | SNI 1155 : 2011 | (Uncoated Steel Wire for Prestress Concrete (KBjP/Pc Wire) ) | |
| PC Bar | SWPD-1 | JIS G 3137 : 2008 | (Small Diameter Steel Bars for Prestressed Concrete) |
| KBjP-Q RI | SNI 7701 : 2011 | (Quench Steel Bar for Precast Concrete (Pc Bar/KBjP-Q)) | |
